transition

alias trFree

Description

The transition command changes SOLIDWORKS PDM files from one workflow state to another using a specified transition.

This command supports three modes:

  • Batch transition using CSV source (recommended for large migrations)
  • Search-based transition
  • Single file transition

Syntax

transition -transitionidorname <id-or-name> -filePath <path> [-mode simple|references]
transition -transitionidorname <id-or-name> -search <pattern> [-recursive] [-mode simple|references]
transition -source <csv> -password <password> [-batch <size>] [-comment <text>]

Use -id as an alternative to -filePath for the same operand. A required target still needs one selector, even though each alternative is optional individually. See File IDs and paths for selection rules and command-specific exceptions.

Parameters

Parameter Alias Required Description
-transitionidorname -tr No Specifies the workflow transition ID or name. Required for search and filepath modes.
-filePath -f No Specifies a single file to transition.
-mode No Controls whether direct file and search transitions use simple mode or reference mode.
-search -s No Searches for files matching a pattern in the current directory.
-recursive No Includes subfolders when used with search.
-source No Specifies a CSV file containing files to transition in batch.
-password No Specifies the PDM user password required to execute the transition. Only used with source parameter. Example:
-batch No Specifies how many files to process per batch.
-comment No Specifies the transition comment.
-id No Positive PDM file ID instead of -filePath, identifying the same file that -filePath describes (including a macro, input CSV or existing output file). Requires a connected vault. Shared files with multiple locations require an exact -filePath. Resolving the ID itself does not download, check out or check in the file; the requested command still performs its normal operation.

transitionidorname

Specifies the workflow transition ID or name. Required for search and filepath modes.

Example:

-transitionidorname 12

source

Specifies a CSV file containing files to transition in batch.

The CSV may be:

  • Absolute path
  • Relative to current directory

Example:

-source transitions.csv

Important

The file must be locally cached.

password

Specifies the PDM user password required to execute the transition. Only used with source parameter. Example:

-password mypassword
Important

Your password remains visible in your session output. Do not start PDMShell with winlog parameter.

batch

Specifies how many files to process per batch.

Default: 1000 Example:

-batch 5000

Recommended values: 500

comment

Specifies the transition comment.

Default:

Transitioned by PDMShell

Example:

-comment "Released by migration script"

mode

Optional. Controls whether direct file and search transitions use simple mode or reference mode.

Allowed values:

  • simple: transitions only the selected file. This is the default.
  • references: transitions the selected file and references according to SOLIDWORKS PDM transition behavior.

Example:

-mode references

This parameter applies to filePath and search mode. CSV source mode uses the PDM batch transition reference settings described below.

Searches for files matching a pattern in the current directory.

Example:

# transition
-search %.sldprt

recursive

Includes subfolders when used with search.

filePath

Specifies a single file to transition.

Example:

# transition
-filePath part.sldprt

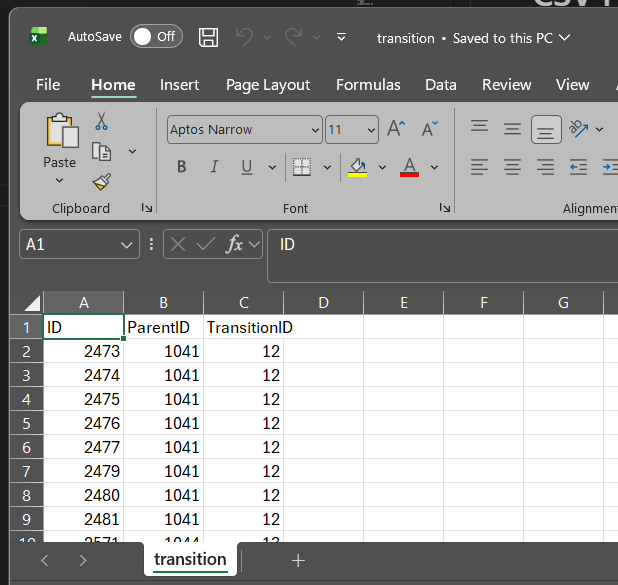

CSV Format

Required format:

FileID,ParentFolderID,TransitionID

Example:

FileID,ParentFolderID,TransitionID
34521,1201,15
34522,1201,15
34523,1205,18

transition.csv

Batch Mode

This is the recommended mode for:

  • Data migrations
  • Vault cleanup
  • Bulk state changes
  • Automation

Supports hundreds of thousands of files.

Example:

transition -source transitions.csv -password mypass -batch 2000

Important Considerations For Batch Mode

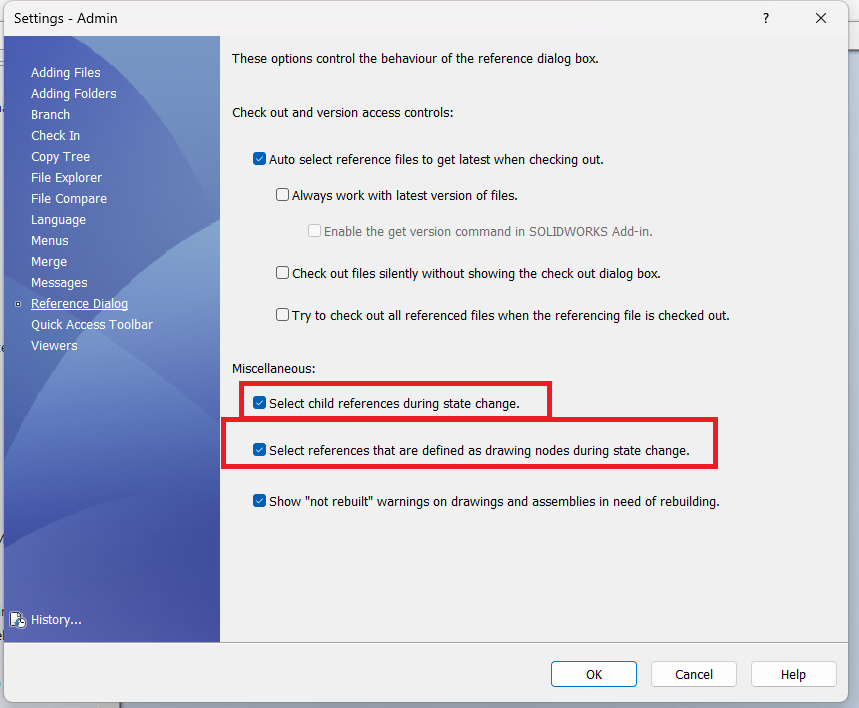

ReferenceDialogSettings

PDMShell batch transitions are affected by the logged-in user’s Reference Dialog settings. If “Select child references during state change” and “Select references that are defined as drawing nodes during state change” are enabled, PDM will also transition referenced files, not just the source files from the CSV. If you want PDMShell batch mode to transition only the source files, these options must be disabled for the logged-in user.

Search Mode

Transitions files found using search.

Example:

transition -search %.sldasm -transitionidorname 12 -recursive

Transition search results with references:

transition -search %.sldasm -transitionidorname 12 -recursive -mode references

Single File Mode

Transitions one file.

Example:

transition -filePath part.sldprt -transitionidorname 12

Transition one file with references:

transition -filePath part.sldprt -transitionidorname 12 -mode references

Validation

The command automatically:

  • Validates transition IDs
  • Validates workflow permissions
  • Validates file state eligibility
  • Skips invalid files

License Limitations

Free version limits number of files processed.

To remove limit: https://bluebyte.biz/product/pdmshell

Best Practices

  • Use source mode for large operations.
  • Use batch size between 500 and 5000.
  • Always test with small batch first.
  • Backup vault before large operations.

Search results report

Add -csv "C:\Reports\results.csv" when using -search to save operation results. The first columns are file ID, parent folder ID, file name and output, followed by status and error details. The report folder must exist. New vault reports are added to PDM; existing vault reports must be checked out by you on this computer and remain checked out. External reports are replaced. See CSV operation reports for command-specific outcomes.
