ADDTOVAULT Command Documentation

DESCRIPTION:

The addtovault command is used to add files and/or directories to the SOLIDWORKS PDM vault. It supports multiple input methods including direct file paths, folders, and CSV mapping maps. Additional options allow batch processing, filtering, ignoring existing files, updating references, and exporting results.

Note

It is highly recommended that you run PDMShell as Administrator before using this command.

SYNTAX:

addtovault [-source <path> | -map <csvPath>]  [-skip] [-count] | [-directory <Vault or outside directory>] [-search <pattern>] [-recursive] [-batch <size>] [-ignoreexisting] [-updaterefs] [-csv <outputPath>] [-propertymap] [-clear]

PARAMETERS:

  • source: Specifies the source file or directory to be added to the vault.

Supports:

• Single file
• Folder

If a folder is specified, files can be filtered using -search and -recursive.

If not specified, the current working directory is used.

  • map:

Specifies a CSV file containing file mapping information.

The CSV must contain two columns (First row is header):

Column 1: Full source file path
Column 2: Destination folder path relative to the target vault directory

Example CSV:

FilePath,Target
C:\Data\Part1.sldprt,ProjectA\Mechanical
C:\Data\Part2.sldprt,ProjectB\Mechanical

With -map, you skip a specified number of items using -skip to start from a starting index in your map file. You can limit the number of items to process using the -count.

#uses a map file and starts from the index 5234 only processing 540 mappings
addtovault -map "C:\Users\hawkridge\Downloads\map\map.csv" -batch 50 -propertymap "C:\Users\hawkridge\Downloads\map\property.csv" -skip 5243 -count 540 -clear -ignoreexisting -csv "result.csv"

This parameter overrides -source.

Important

Please make sure you don't have duplicates copies to the same target directory.

  • directory:

Specifies the destination folder in the PDM vault.

If not specified, the current vault directory is used.

Example:

-directory "Projects"
  • search:

(Optional)

File Explorer search pattern used to filter files when -source is a folder.

Supports:

• Wildcards (*)
• Multiple extensions
• Separators: , ; |

Examples:

-search "*.sldprt"
-search "*.sldprt;*.sldasm"
  • recursive:

(Optional)

Includes all subfolders when the source is a folder.

If not specified, only the top-level folder is processed.

  • batch:

(Optional)

Specifies the number of files to add per batch.

This improves performance and stability when adding large numbers of files.

Examples:

-batch 50
-batch 100

If not specified, all files are added in a single batch.

Important

Please use a batch size when processing large directory +1000 files. We recommend a batch size of 100.

  • ignoreexisting:

(Optional)

Ignores files that already exist in the vault. Prevents duplicate additions and overwriting.

  • updaterefs:

(Optional)

Updates file references after files are added.

This is recommended when migrating SOLIDWORKS assemblies to ensure references point to the correct vault locations.

  • csv:

(Optional)

Exports the results of the add operation to a CSV file.

Example:

-csv "C:\Reports\add_results.csv"
  • propertymap: A csv file path containing a list of files and their properties. Use DocManProps to generate a list and edit in excel.
-csv "C:\Reports\propertymap.csv"

You only need the columns that marked in red:

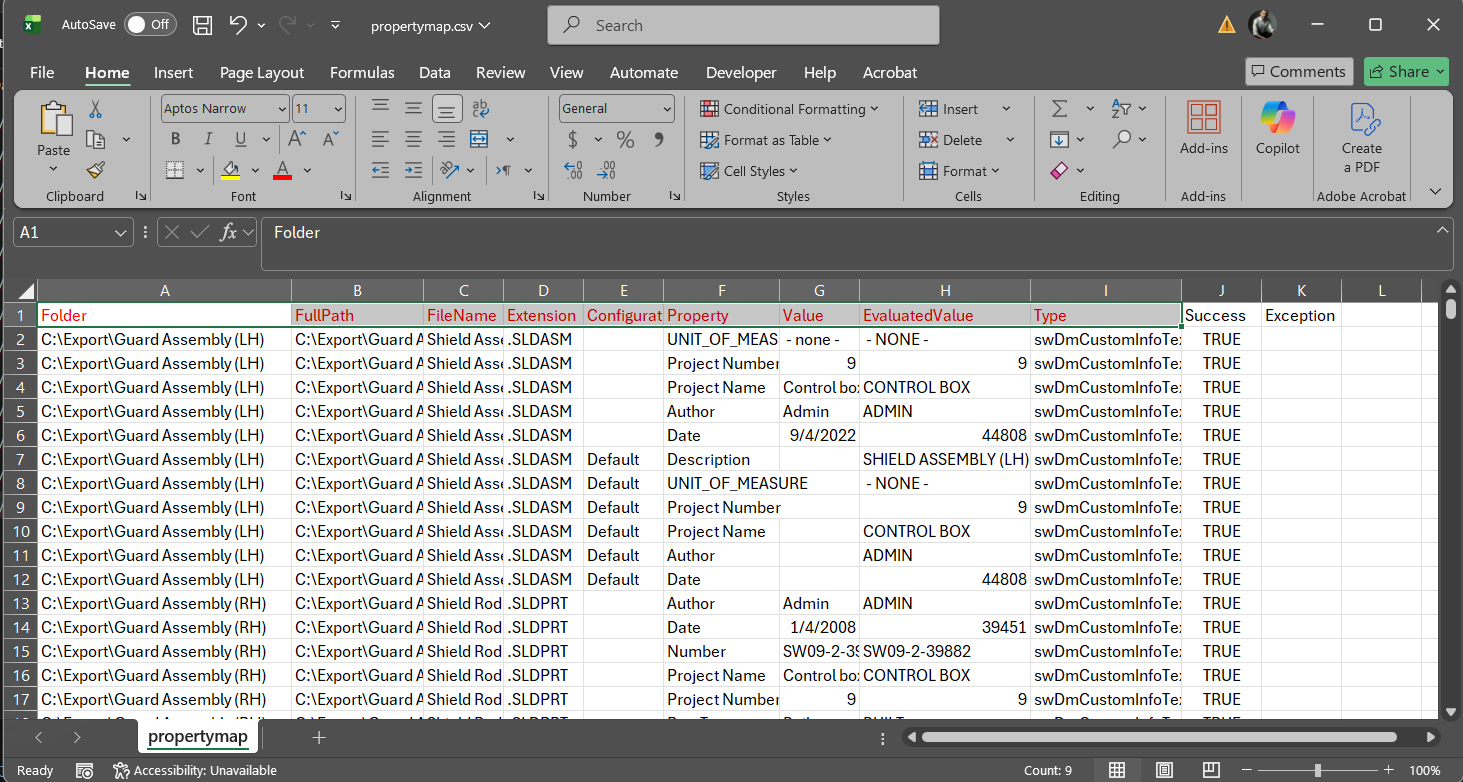

Example of property map file

Important

If you specify the word "DELETE" as the value, PDMShell will delete that property from in the migrated file during the add operation. The original file will not be affected.

If you specify -clear, PDMShell will clear all the properties from the file before adding it to the vault and prior to apply the property map.

EXAMPLES:

Adds a single file to the current vault directory:

addtovault -source "C:\Projects\file.txt"

Adds all parts and assemblies recursively:

addtovault -source "C:\Projects" -recursive -search "*.sldprt;*.sldasm"

Adds files using a CSV mapping file in batches of 50:

addtovault -map "C:\Projects\mapping.csv" -batch 50

Adds files and exports results:

addtovault -source "C:\Projects" -recursive -csv "C:\Reports\results.csv"

Adds files and updates references:

addtovault -source "C:\Migration" -recursive -updaterefs

Adds files to a specific vault folder:

addtovault -source "C:\Projects" -directory "Projects"

Add files from a map CSV (50 at a time) and save the results to ret.csv, while ensuring properties are updated using a property map CSV file. This also performs a search and ignores files that already exist in the vault.

addtovault -map "c:\export\map.csv" -ignoreexisting -csv "ret.csv" -batch 10 -propertymap "c:\export\propertymap.csv"

REMARKS:

• Files are left checked out after being added. • Use checkin command to check in files after adding.

Example:

checkin -search % -recursive

• Batch processing is strongly recommended for large migrations.

• The ignoreexisting parameter prevents duplicate files from being added.

• The updaterefs parameter should be used when adding SOLIDWORKS assemblies.

• Ensure you have sufficient vault permissions before running this command.

• The map parameter overrides source if both are specified.

Note

It is recommended to perform large add operations in stages and verify results using the exported CSV report.
